High Density PE Film Extrusion Blowing Machine For Shopping Bags

Product Categories

ZHEJIANG BANGTAI MACHINE CO.,LTD.

Contact Now

Name: High Density PE Film Extrusion Blowing Machine For Shopping Bags
Brand: SANBI
Price: 8000 USD

Brand Name : SANBI

Model Number : SJ-A50、55、65、70

Certification : CE,ISO9001:2008,SGS

Place of Origin : Zhejiang, China

MOQ : 1 set

Price : USD 8000-12000 set

Supply Ability : 30 sets/month

Delivery Time : 20 workdays

Packaging Details : standard wooden package

Certificate : CE,ISO,SGS

Feature : Low Density PE Film Extrusion Blowing Machine For Shopping Bags

Raw material : HDPE,LDPE,LLDPE

Contact Now

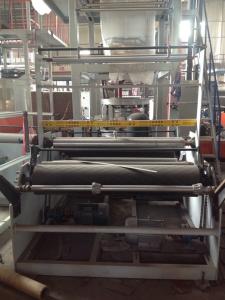

High Density PE Film Extrusion Blowing Machine For Shopping Bags

Description:

Its extruder, cylinder and screw rods are made of quality alloy steel that have been nitrized and processed in a precision way.

it is sound in hardness, durable in corrosion resistance.

The specially-designed screw is of sound quality in plasticizing, which helps increase the production capacity.

It is applied to blowing the plastic films like low density polytene (LDPE), high density polytene(HDPE) and linear low density polytene (LLDPE).

It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.

OPTIONAL EQUIPMENT:

1)AUTO LOADER
2)CAST ALUM HEATER
3)AIR SHAFT
4)DIE ROTARY DEVICE
5)BOUBLE SIDES WINDER
6)UP AND DOWN

7)PNEUMATIC DEVICE

Main Technical Parameter:

Model	A50	A55	A65	A65-1
Diameter of screw	φ50	φ55	φ65	φ65
Rcduced diameter of film(mm)	100-600	200-800	300-1000	400-1200
Single-face Thickness of film(mm)	0.01-0.10	0.01-0.10	0.01-0.10	0.01-0.10
Max.Extrusion(Kg/h)	35	50	65	80
L/D	28:1	28:1	28:1	28:1
Power of main moto(kw)	7.5-11	11-15	18.5-22	22
Power of Tracion main moto(kw)	1.1	1.1	1.5	1.5
Heating Power(kw)	11	13	19	21
Outline diameter(L x W x H) (mm)	4800 x 1900 x 3500	5500 x 2100 x 3800	6500 x 2300 x 4200	6500 x 2500 x 4800
Weight(T)	1.5T	2T	2.3T	2.6T
