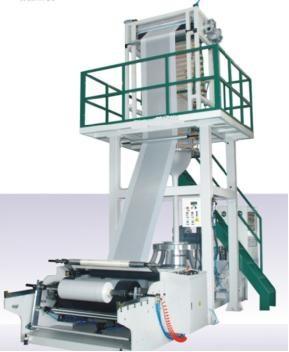

ABA Film Blowing Machine lager Capacity 50Kw Automatic double winder
Use:
The lines are designed developed by our corporation according to market need, they reach the advanced levels in the 90s, come up with analogous lines in home.
It is optimum designed on the trounds of preference of analogous lines in foreign and home.
Main Technical Variables :
|
Model
|
ABA 1000
|
|
Screw Diameter
|
Ф45×1 Ф55×1
|
|
Screw Ratio L/D
|
30:1
|
|
Screw Speed
|
15-120r/min
|
|
Main Motor Power
|
15Kw×2 18.5KW
|
|
Extrusion Output
|
100kg/h
|
|
Range of Die
|
Ф100
|
|
Single-sided Thickness of Film
|
0.01-0.10mm
|
|
Max. Folding Width of Film
|
800mm
|
|
Electric Total Capacity
|
50Kw
|
|
Overall Dimension
|
5000×3500×5000mm
|
|
Weight of Machine
|
4T
|
Extruder
Screw Dia. (mm): ф45×1 ф50×1
Screw & Barrel L/D Ratio: 30: 1
Barrel: 38 CRMOALA ALLOY
Barrel Heater Capacity (Kw): 10*3
Barrel Auto Thermo Control: 4 Points
Cooling Blower: 3kw
Driving Motor: 15Kw×2 (Siemens Motors with inverter type)
Screen Changer: manual type
Screen Changer Heater Capacity (Kw): 3
Dosing system
Gravimetric blender 2 (2 materials will or master batch will be mixed fixed % on each screw feeder),
Die:
Rotary die device
Die Dia. (mm): φ120
Die Heater Capacity (Kw): 10
Die Auto Thermo Control: 1 Point
Air Ring: 1 Set
Bubble Basket: Hexagon Type
Take-up Unit:
To be possible to moving the tower 2.2m
Pinch Roller- Embossing Roller
Take-up Motor with Inverter Control: AC: 1.5kw
AUTO Winding Unit
EPC (Edge position control)
Hydraulic unloading device
Triangle folder
Slit and seal knife,
Automatic double winder,
Tension control system
Max. Width (mm): 1200
Max. Wind-up roll dia. (mm): φ 1000
Winding Motor: 2.2KW motor with inverter *2pc
with autotension control and inverter
Flat cutting knives and film opening knives
Air shfts= 4 pcs
Banana rollers = 2 pcs 2
Rewinding Speed: 10-80m/min
2.Film Blowing Machine spare part list
|
01
|
filter
|
1 M
|
08
|
electric –testing pen
|
1 pcs
|
|
02
|
magetic stone
|
1 pcs
|
09
|
hexageonic wrench
|
1 pcs
|
|
03
|
air pipe
|
1 pcs
|
10
|
glove
|
2 pairs
|
|
04
|
8-10 open and wrench
|
1 pcs
|
11
|
Steady Bar
|
1 pcs
|
|
05
|
12-14 open and wrench
|
1 pcs
|
12
|
Mould Pipe
|
1 pcs
|
|
06
|
14-17 open and wrench
|
1 pcs
|
13
|
electric-thermal couple (E)
|
2 pcs
|
|
07
|
17-19open and wrench
|
1 pcs
|
14
|
screw heater
|
1 pcs
|
