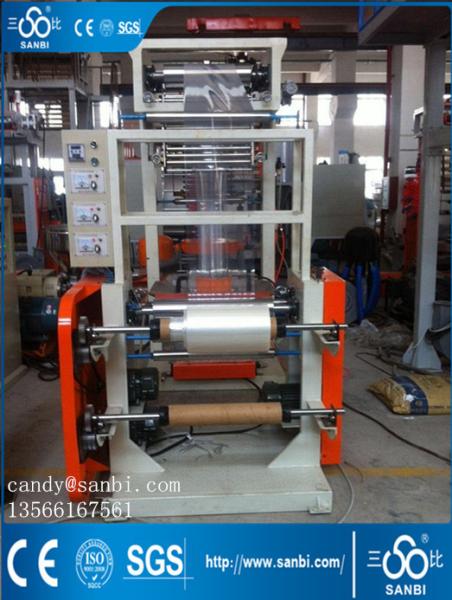

600mm PVC Heat Shrink Pe Film Blowing Machine For Packing Foodstuff
The machine's set adopts to revolve a mold head and changes the Pin adjust soon and automatic
constant temperature control etc. item technique, the production come out of product petrochemistry
good, the degree of thickness even degree, clarity of thin film, neat degree, constringency rate...etc.
various quality index signs attain printing class the technique standard of the thin film.
The machine's set organization tightly packed, the operation is easy, mainly from as follows part of
constitute:Extrude machine, revolve a mold head, cool off breeze wreath, the first to lead, hot water
box and already set set, the second lead(dynamoelectric ascend and descend), double the work
accept a machine and extrude a machine electricity to control a cabinet and assist a machine electricity
to control a cabinet.
Main technical
|
Model
|
BT-600
|
|
Suitable Material
|
PVC
|
|
Width range
|
550mm
|
|
Thickness
|
0.025—0.10mm
|
|
Screw diameter
|
55mm
|
|
Screw L/D Ratio
|
28:1 L/D
|
|
Screw/Barrel Material
|
38 CrMoAIA
|
|
Heater capacity
|
20kw
|
|
Auto-thermo Control
|
6z
|
|
Barrel Cooling Fan
|
0.25kw*2
|
|
Driving Motor
|
15kw
|
|
Die Diameter
|
45-100mm
|
|
Air Ring Diameter
|
550mm
|
|
Max. Film Output
|
20kg/h
|
|
Cooling Blower
|
1.14kw
|
|
Take-up Roller Width
|
600mm
|
|
Take-up Motor
|
1.5kw
|
|
Take-up speed
|
20m/min
|
|
Winding motor
|
10N/m
|
|
Tank electric heat
|
8kw
|
|
Machine dimension
|
800*1500*3800mm
|
|
Weight
|
2000kg
|
1.main invereter : NS shanghai brand
2. Traction motor: Zhejiang (by inverter control)
3. Motor: WEINUO(NANJIN)
4 Screw material: 38 Chrome (Zhejiang Zhoushan)
5. Gearbox: Hard Tooth surface reductions Gearbox ( international standard )-CHANGZHOU
6. Temperature: YUYAO
7. Low-pressure electrical part :Zhengtai
8. air blower: 2.2KW (wuxi)
